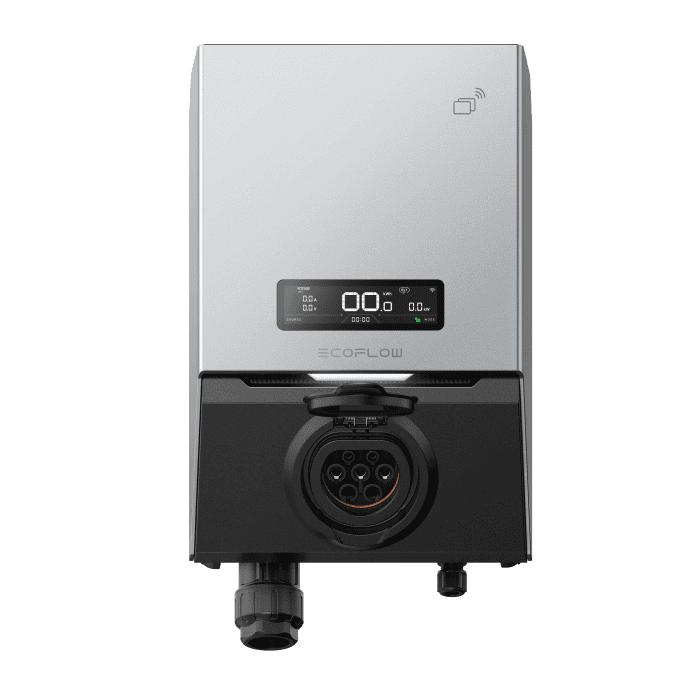

EcoFlow PowerPulse 2 EV Charger 11 kW – Intelligent Charging with Solar Integration
The EcoFlow PowerPulse 2 EV Charger enables efficient, flexible, and independent charging of electric vehicles – using solar power, grid electricity, or in combination with the EcoFlow PowerOcean system. It delivers up to 11 kW of charging power, making it ideal for both private and commercial applications.
Versatile Charging Modes for Different Needs
Options include fast charging, scheduled charging, PV surplus charging, and intelligent charging strategies. Operation is convenient via the EcoFlow App, allowing easy switching between modes.
Smart Mode with AI Support
The AI-based mode analyzes electricity tariffs, energy goals, and available resources in real time. Solar power, grid electricity, and battery storage are automatically combined to optimize costs and maximize self-consumption.
Integrated Load Management
Dynamic load management ensures safe, uninterrupted charging even when multiple devices are operating simultaneously. Charging power is continuously adjusted according to grid conditions.
§14a EnWG Compliant
Compliance with §14a EnWG regulations allows grid operators to control charging power during peak loads, potentially offering reduced grid fees.
MID Meter for the 3-Phase Version
The three-phase version includes a MID-compliant meter for legally valid measurement of charged energy – suitable for commercial use or company car billing.
Technical Specifications
-
Type: Wallbox for wall mounting
-
Charging Power: up to 11 kW (single- or three-phase)
-
Charging Socket: Type 2
-
Access Control: RFID
-
Surplus Charging: possible (PV connection)
-
Rated Voltage: 230 V / 400 V
-
Rated Current: 16 A
The EcoFlow PowerPulse 2 is a future-proof EV charger with intelligent technology and versatile applications.
Technical Data – PowerPulse 2 11 kW
-
AC Input: 230 V (single-phase) / 400 V (three-phase)
-
AC Output: Max 7.4 kW (single-phase) / 11 kW (three-phase)
-
Communication: WiFi / Bluetooth / RS485 / CAN
-
Protection Class: IP54 with connected cables
-
Dimensions: 333 × 226 × 145 mm
-
Weight: approx. 3.5 kg
