Ecoflow Power Kit Distribution Panel

Overview

The EcoFlow Power Kit Distribution Panel is designed to help organize and manage power distribution in off-grid energy systems. It serves as a central hub for AC and DC circuits, making it easier to build a structured setup for a camper, tiny house, or stationary installation.

With flexible mounting options, clearly labeled connections, and integration with the Power Kit Console and app, this EcoFlow distribution panel supports practical energy management in compact spaces. It is built for users who want a cleaner, more controlled way to distribute power across their system.

Why choose the EcoFlow Power Kit Distribution Panel?

In off-grid power solutions, clean distribution is just as important as generation and storage. This panel helps centralize wiring, simplify installation, and create a more organized electrical setup.

• Central hub for AC and DC power distribution
• Suitable for campers, tiny houses, and stationary off-grid systems
• Designed for straightforward installation and system monitoring
• Supports smart control through the Power Kit Console and app

Key features

Flexible installation

You can mount the panel inline or directly on the wall, depending on the layout of your system. This gives installers more flexibility when planning the available space.

Clear connections and easy wiring

Clearly labeled connections and tool-friendly wiring help make the installation process more manageable. LED indicators provide visual feedback on system status.

AC and DC circuit support

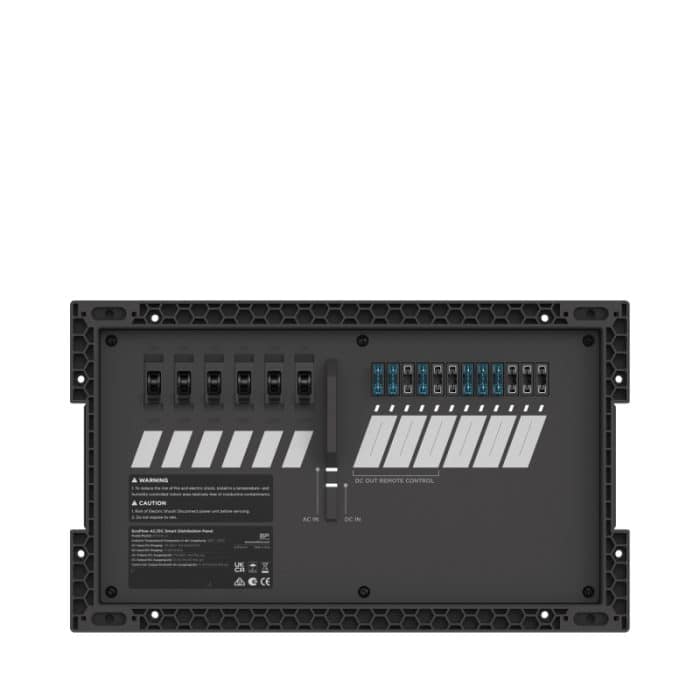

The panel is set up for both AC and DC circuits, helping create an organized energy distribution system with defined outlets and fused outputs.

Technical overview

• AC input: 220–240 V, 50 Hz, max. 30 A
• DC input: 10–30 V DC, max. 70 A
• AC outputs: 6 outlets, each up to 10 A
• DC outputs: 12 fused outputs, 6 controllable via the Power Kit Console and app
• Dimensions: 354 × 210 × 98 mm
• Weight: 2.6 kg
• Protection rating: IP21
• Operating temperature range: -25 °C to 60 °C

Designed for compact off-grid setups

The compact format makes this panel suitable for installations where space is limited. It can be integrated into portable power solutions or more permanent renewable energy setups where organized distribution is needed.

Its IP21 protection rating and wide operating temperature range make it a practical choice for demanding indoor-style electrical environments, as long as the installation matches the product’s intended use and specifications.

Package contents

• 1× AC/DC Smart Distribution Panel
• 2× Wall mounting brackets

Frequently asked questions

Is the EcoFlow Power Kit Distribution Panel suitable for camper installations?
Yes. The product is presented as suitable for campers, tiny houses, and stationary off-grid setups.

Can it handle both AC and DC power?
Yes. It supports both AC and DC inputs and outputs for structured power distribution.

Does it support smart control?
Yes. Six DC outputs are controllable via the Power Kit Console and app.

How is it installed?
It can be mounted inline or directly on the wall, depending on the system layout.

What are the main technical limits?
Key limits include 220–240 V AC input, 10–30 V DC input, and the specified output ratings for AC and DC circuits.

What is included in the box?
The package includes the AC/DC Smart Distribution Panel and two wall mounting brackets.

The EcoFlow Power Kit Distribution Panel is a practical option for users looking to improve control, safety, and organization in an off-grid energy system.
