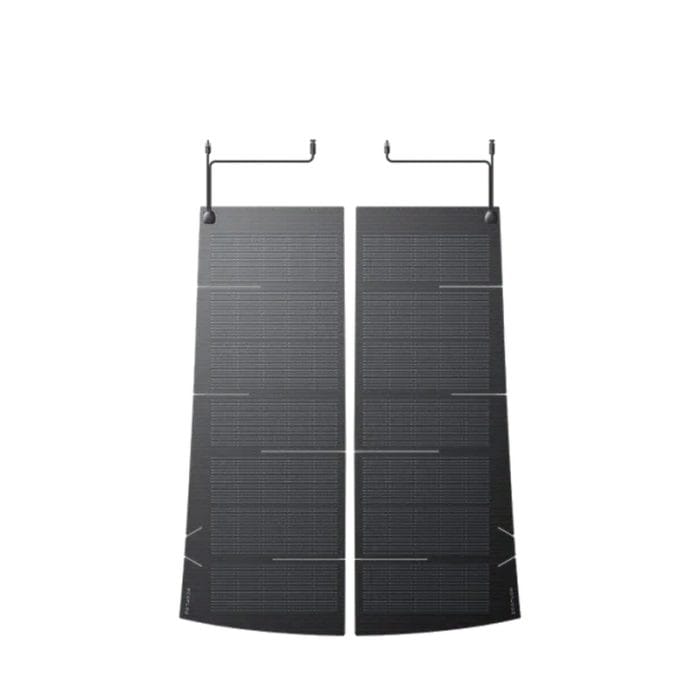

Ecoflow Heat Guard Solar Film (For Model Y)

Overview

The EcoFlow Heat Guard Solar Film for Model Y is a tailor-made solar solution designed for the Tesla Model Y roof. It combines solar energy generation with thermal insulation in a low-profile design that integrates neatly with the vehicle.

With 290 W output, N-type TOPCon cell technology, and a flush-mounted fit, this solar film is built for drivers who want to make use of roof-mounted solar power for compatible EcoFlow portable power stations while maintaining a clean appearance and no known aerodynamic impact.

Key benefits of the EcoFlow Heat Guard Solar Film for Model Y

• Rated output of 290 W for solar charging use
• Designed for the Tesla Model Y roof
• Helps reduce cabin heat with integrated thermal insulation
• Supports portable power stations such as EcoFlow DELTA 2 or DELTA 3
• Flush-mounted, low-profile design
• IP68-certified for resistance to water, dust, and sand

How it works

The solar film captures sunlight from the vehicle roof and converts it into electricity that can be used to charge compatible portable power stations. According to the product information, it is not suitable for charging the Tesla main battery.

This makes it a practical option for off-grid travel, camping, and outdoor use where extra energy is needed for appliances, devices, or portable power storage.

Thermal comfort and energy efficiency

Beyond solar generation, the EcoFlow Heat Guard Solar Film is also designed to improve cabin comfort. The product information states that it can reduce interior temperature by more than 10 °C and help lessen the load on air conditioning.

It uses Air Gap Technology for additional insulation, which may support better thermal control when the vehicle is parked in hot conditions.

Technology and performance

Advanced solar cell design

The film uses N-Type TOPCon monocrystalline silicon cells with an efficiency of at least 24.8%. This cell technology is designed to deliver strong performance in a compact surface format.

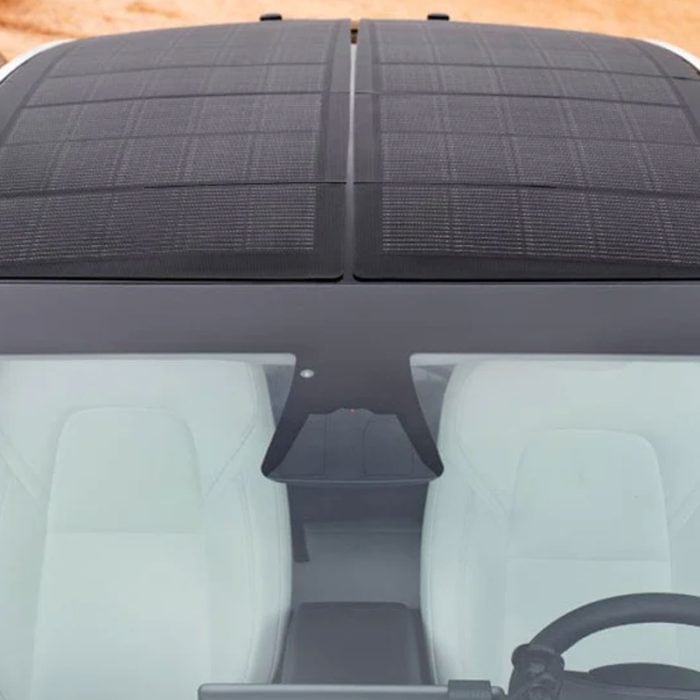

Flat, integrated installation

The low-profile design is intended to sit flush on the vehicle roof. EcoFlow describes the product as having zero drag, meaning it is designed not to affect driving range through added aerodynamic resistance.

Installation and compatibility notes

Installation is carried out using 3M™ VHB™ adhesive tape, described as residue-free. The product also uses an ultra-flat FlatLink MC4 cable for routing.

For connection, the solar film uses an XT60 connector. It is intended for use with EcoFlow power stations and the EcoFlow ecosystem, including monitoring through the EcoFlow App and integration with EcoFlow Oasis where supported.

Technical specifications

• Rated power: 290 W (±5 W)
• Open circuit voltage: 28.5 V
• Operating voltage: 24.4 V
• Operating current: 11.9 A
• Short-circuit current: 12.4 A
• Efficiency: ≥ 24.8%
• Cell type: TOPCon monocrystalline silicon
• Dimensions: 620 × 1640 × 18 mm
• Weight: approx. 5.0 kg
• Connector type: XT60
• Max. system voltage: 600 V DC (IEC/UL)
• Lifespan: 5 years
• Warranty: 2 years

Who is it for?

This product is a good fit for Tesla Model Y owners who want a roof-mounted solar solution for portable power generation. It may be especially useful for:

• Camping and road trips
• Off-grid travel
• Outdoor work or recreation
• Users of EcoFlow portable power stations
• Drivers looking for added thermal insulation on the roof

FAQ

Can the EcoFlow Heat Guard Solar Film for Model Y charge the Tesla battery?

No. The product information states that it is not suitable for charging the Tesla main battery. It is intended for charging compatible EcoFlow power stations.

How much power does it produce?

The rated power is 290 W, with a stated maximum daily yield of up to 1.5 kWh per day under suitable conditions.

Does it affect driving range?

The product is described as a flush-mounted, zero-drag design, which means it is intended not to add aerodynamic drag that would reduce range.

Is it waterproof?

Yes. It is listed as IP68-certified, meaning it is resistant to water, dust, and sand.

What devices can it charge?

It is designed to charge compatible portable power stations such as the EcoFlow DELTA 2 or DELTA 3, depending on system compatibility.

What is the warranty?

The product information lists a 2-year warranty and a 5-year lifespan.

If you are looking for a clean, roof-integrated solar charging option for your Tesla Model Y, the EcoFlow Heat Guard Solar Film for Model Y offers a practical mix of solar generation, thermal comfort, and compatibility with EcoFlow power stations.
